What Are CNC Cooling Plates and Why They Matter in Flight Systems

The plate is the silent member of the thermal loop.

A CNC cooling plate - often called a cold plate - is a precision-machined metal slab with internal or surface channels that carry a coolant (air, glycol-water, or a dielectric fluid) past the components that generate heat. On the other side of the plate sits the heat source: an RF module, an IGBT brick, a battery module, a radar transmit-receive unit. The plate's job is to pull heat out of that source faster than the source makes it, and to do so across an interface that stays flat, sealed, and leak-free for the life of the aircraft.

Where you actually find them on an aircraft

• Avionics line-replaceable units in the bay - the plate pulls heat out of processors and power stages bolted to its face.
• Power electronics and inverters on electrified and eVTOL platforms, where switching losses are concentrated.
• Radar and electronic-warfare arrays, where a stable thermal baseline protects phase and gain.
• Battery-pack and energy-storage modules, where cell temperature spread decides cycle life.
• Optical and sensor gimbals that need a thermally stable mounting plane to hold boresight.
• Fuel-system or actuator controllers where a hot day transient is the qualification cliff.

Every one of those is a thermal-resistance problem and a flatness problem at once. A plate that bows a few tens of microns after brazing, or whose channel lands 0.1 mm off from the heat-source footprint, quietly pushes your junction temperature up - and qualification margins are not generous. The plate is the silent member of the thermal loop; when it is right, nobody notices.

Cooling plate / cold plate

A machined slab with channels that transfer heat from a source to a flowing coolant.

Thermal resistance (Theta)

How hard heat must work to cross the interface; lower is better, and flatness drives it.

Braze joint

The sealed seam that closes the channel; its integrity decides whether the plate leaks.

Flatness (per span)

Deviation of the sealing face from a true plane over a given length; air gap here becomes heat.

Coolant

The fluid (or air) that carries heat away; its chemistry drives corrosion choices.

Our broader work on aerospace components machining guides covers brackets, hinge fittings, and structural housings where the same flatness and traceability discipline applies. The cooling plate is simply the one where thermal and mechanical tolerances meet.

Aerospace AI part image

How CNC Precision Machining Shapes Aerospace Cooling Plates

Precision is manufactured into the process chain, not added at inspection.

A cooling plate looks like a simple block until you machine the channel, drill the ports, and braze the lid - and then it has to stay flat and leak-tight. CNC precision machining of a plate that holds its shape after brazing is a controlled chain, not a quick cut. Here is how we run a plate program so it meets spec after it leaves the building.

Stage 1 - Material and roughing

1. Certify the incoming plate stock with a mill certificate confirming the alloy (6061, 7075 aluminum, copper, or 316L stainless as the design dictates).
2. Rough with moderate feeds, leaving even stock so the part does not build residual stress that later relaxes and bows the plate.
3. For aluminum, plan a stress-relief step before the finish pass so the plate does not warp after brazing.
4. Hold the part on a true datum face so every later operation references the same surface.

Stage 2 - Machining the channel and sealing face

1. Machine the serpentine or parallel channel with sharp tooling and controlled feeds to protect wall integrity.
2. Semi-finish the sealing face, leaving a thin, even allowance for the final pass.
3. Verify flatness and channel depth on a CMM before the finish cut.
4. Drill and deburr the ports so no burr becomes a flow restriction or particle later.

Stage 3 - Braze or lid, finish, inspect, and document

1. Braze the lid in a vacuum or controlled atmosphere with fixturing that protects flatness.
2. Finish the sealing face to the target Ra, measured with a profilometer rather than judged by eye.
3. Leak-test the closed plate (helium or pressure) so a weep never reaches the aircraft.
4. Inspect critical dimensions on a CMM and tie the lot to its material cert, machine log, and Certificate of Conformance.

The point is simple: a plate only stays flat and leak-tight if the process respected the material and the datum at every stage. A shop that skips stress relief or final leak test is handing you a plate that will bow or weep after it ships. Ask to see the process, not just the price.

Tight Tolerance CNC: Flatness and Flow Channels on Cooling Plates

Spend the tight tolerance where wetting and flow depend on it - nowhere else.

Tight tolerance CNC on a cooling plate is about priorities, not a single magic number. The sealing-face flatness, the channel depth and width, and the port position are the features that earn a tight callout. The overall envelope and the cosmetic edges do not. Specifying everything tight is the fastest way to inflate cost with zero benefit to cooling.

Typical tolerances we hold by feature

We routinely hold +/- 0.005 mm on the critical locating and sealing features of precision plates where the application demands it, and we measure rather than trust. The number only means something because it is measured, recorded, and tied to the lot.

The right answer from a vendor is specificity: which features are tight, why, and how each is checked. That honesty is a stronger qualification signal than any brochure claim about precision.

Aerospace AI part image

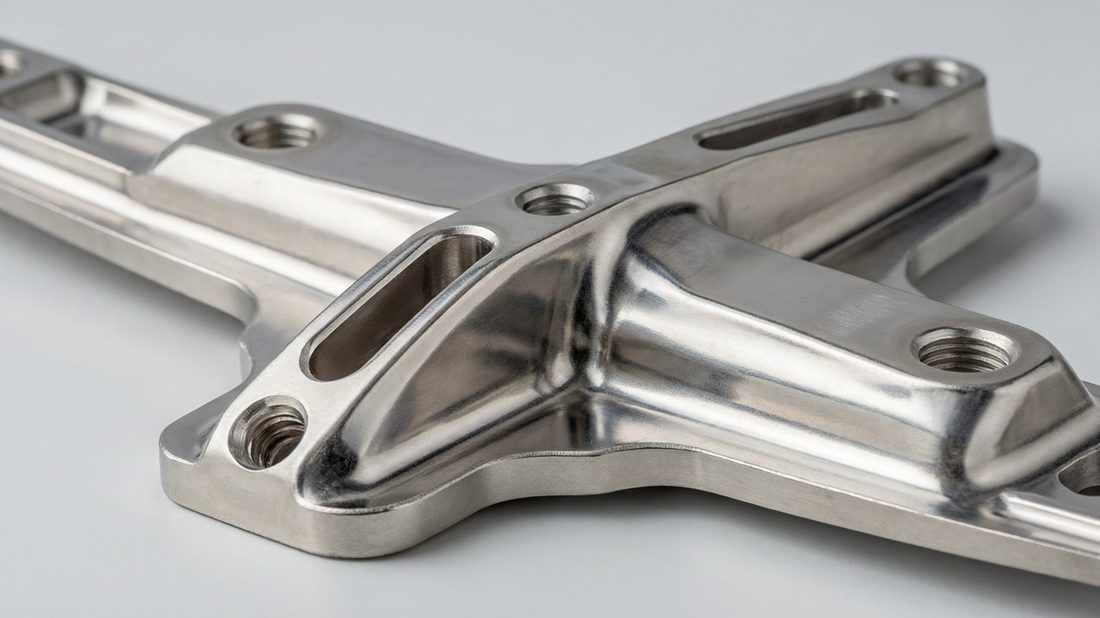

Comparing Aerospace CNC Parts: Cooling Plates vs Structural Brackets

The choice is rarely about which is 'better' - it is about what the part's first job is.

The most common fork buyers face is whether the part in hand is a cooling plate - a functional thermal device - or a structural bracket that happens to carry heat. Neither is 'better' in the abstract; the right call depends on whether the part's first job is moving heat or carrying load.

Choose cooling plates if

• The part sits between a heat source and a coolant loop.
• Thermal resistance is on the critical path for qualification.
• You need certified leak integrity on a fluid-bearing part.
• Flatness drives how well the interface wets.

Choose structural brackets if

• The part mainly carries or locates a load.
• Heat is incidental, not the design driver.
• There is no coolant or sealed fluid path to protect.
• Cost and lead time dominate and the joint is non-critical.

Stainless Steel Mirror Finishing for Aerospace Cooling Plates

The finish is a function on a plate, not a beauty pass.

On a cooling plate, surface finish pulls in two directions at once. The sealing face often wants to be smooth so it wets the interface and sheds no particles; structural or internal faces want to be left as-machined to save cost. Stainless steel mirror finishing enters the story when the plate sees a corrosive coolant, a vacuum-adjacent environment, or a cleanliness-critical loop and needs to be both smooth and passive.

Finish grades and where they belong on a plate

Ra

Arithmetic average roughness; lower means smoother. Ra 0.2 um is our 8K mirror target.

8K finish

A mirror-grade surface we reach at Ra 0.2 um, smooth enough to read as a near-perfect reflection.

Passivation (ASTM A967)

A chemical treatment that restores stainless chromium-oxide so it resists corrosion.

Gall

Two metal surfaces seizing under load; a smooth, passive face avoids it on assembly.

Reaching a true mirror on stainless means controlled machining followed by careful leveling and verification with a profilometer. Pairing that with passivation to ASTM A967 gives you both the smooth, hard sealing surface and the corrosion resistance a plate sees against glycol or a marine environment.

Aerospace AI part image

Custom CNC Parts: Designing Cooling Plates for Your Thermal Budget

Good plates are designed for the loop, not ported from a drawer.

Because a cooling plate lives at the interface of a heat source, a coolant, and a structural mount, treating it as a true custom CNC parts problem - geometry, material, and tolerances chosen for your thermal budget - is what makes it hold up. A plate copied from a catalog will be the wrong footprint, the wrong material, or the wrong port for your loop.

Design rules that keep a plate reliable

• Symmetric stock so the plate stress-relieves evenly and does not bow the sealing face.
• Generous radii at channel turns to avoid stress and braze defects.
• Datum faces called out explicitly, with the ports referenced to a single true datum.
• A planned port location, not a hope that the manifold will find the seat.
• Material chosen against weight, corrosion, and coolant compatibility - not just availability.

A short design-to-order flow

1. Send the drawing, the heat load, the coolant and pressure, and the qualification environment.
2. We return a DFM note: which features need tight callouts and which are waste.
3. Agree the material against your weight, corrosion, and coolant budget.
4. Prototype first, measure flatness and leak-test loaded, then lock the production process.

Cooling Plates Materials: Aluminum, Copper, and Stainless Choices

Material is the first lever on weight, conductivity, and corrosion.

Material is the first thing that decides mass, conductivity, and how the plate behaves in its environment. Aerospace loops usually balance three candidates, and the 'best' one is the one that meets your heat, mass, and environment budget at the same time - not the one with the highest number on a data sheet.

Material decision for plate bodies

We machine all four and will tell you when copper's conductivity is worth its mass penalty and when 316L's corrosion resistance justifies its lower conductivity. The honest answer is a mass-and-heat trade, not a default - and it is the kind of call that should be made against your actual loop, not a catalog rule.

For the material and finish trade-offs across the parts we make, our aerospace components machining guides go deeper on aluminum grades, stainless, and titanium choices for flight hardware.

Aerospace AI part image

Common Mistakes Buyers Make When Specifying Tight Tolerance CNC Plates

Most plate failures are decided at the drawing stage, not on the shop floor.

• Calling out 'smooth' instead of a real Ra target, then arguing about it after shipment.
• Skipping the leak test on a fluid-bearing plate, so a weep shows up on the aircraft.
• Forgetting stress relief, so the plate bows a few microns after the braze cycle.
• Tightening every dimension to save worry, inflating cost and lead time with no benefit to cooling.
• Ignoring port position relative to the heat-source footprint, starving the hottest spot.
• Forgetting to ask how flatness will be proven - a number with no CMM map is a wish.
• Specifying copper when aluminum meets the budget, paying mass and cost for conductivity you do not use.
• Neglecting clean packaging so a pristine plate picks up particles on the way to the line.

None of these are subtle, and all of them are avoidable at the sourcing stage. The disciplined supplier makes the right habit the easy default: ask for the environment, prove the flatness, leak-test the plate, and tell you honestly when mirror finishing is overkill.

A Buyer's Checklist for Sourcing Aerospace CNC Parts Like Cooling Plates

Copy this and send it to every shop on your shortlist. The answers sort them fast.

• Can they show a mill certificate confirming the alloy (6061 / 7075 / Cu / 316L) and grade?
• Do they stress-relieve or age plates, or just cut them like mild steel and hope?
• Can they state a flatness target and verify it with a CMM map, not by eye?
• Will they hold and prove +/- 0.005 mm critical features with inspection records tied to the lot?
• Do they leak-test every fluid-bearing plate (helium or pressure), not just a sample?
• Do they finish the sealing face to a measured Ra and passivate stainless to ASTM A967?
• Can they clean and package the plate to your cleanliness and contamination spec?
• Do they provide first-article inspection, batch traceability, and a Certificate of Conformance on every lot?
• Are tolerances quoted against your drawing, with a DFM opinion on which ones actually matter?

A supplier that clears all nine is rare and worth keeping. One that stumbles on material certification, stress relief, leak testing, or flatness verification should not be on a cooling-plate program - those are exactly the controls that keep a plate wetting and sealing after it ships.
