How to Source Precision Gears and Spline Shafts from a CNC Shop
Sourcing precision gears and spline shafts is not like buying a bracket. A gear's whole job is to share load evenly across its teeth, and a spline's job is to carry torque while sliding - both live or die by geometry that is invisible until the part is running. When the supplier gets it wrong, you do not get a returned shipment; you get a warranty claim, a noisy driveline, and a launch date that slips.
So the real question is not 'who quotes the lowest price?' It is 'who can I trust to hold the DIN grade, the tooth geometry, and the concentricity, batch after batch?' This buyer's guide walks through exactly what we, as a precision shop, would verify in ourselves - and what you should verify in any supplier you are considering. Written plain, the way an engineer would brief a colleague.
We are Dongguan Licun Technology Co., Ltd., brand LusterControl - a Dongguan source factory focused on stainless steel mirror machining since 2015, now 15 years in. We run 60+ CNC machines on a 2,000 m2 floor at roughly 500,000 parts a month, holding ISO 9001, with ISO 13485 completed and IATF 16949 in application. We serve the precision transmission supply chain alongside medical, automotive, and UAV programs, and we have shipped precision parts to brands such as De'Longhi, Donlim, and Breville.
Table of Contents
- 1. How to Source Precision Gears: What a Real CNC Shop Proves
- 2. CNC Gear Machining Capability Every Transmission Supplier Needs
- 3. Spline Shaft Sourcing: DIN 5480 and the Root Radius Trap
- 4. Coupling Machining: Holding Runout on the Coupling Face
- 5. DIN Gear Standards: The Grade You Must Put on the Drawing
- 6. CNC Precision Machining of Integrated Gear-and-Shaft Parts
- 7. A Buyer's Verification Checklist for Precision Gears
- 8. Common Sourcing Mistakes in CNC Gear Machining Programs
Precision Transmission CNC precision component
How to Source Precision Gears: What a Real CNC Shop Proves
The quote is the easy part - the proof is what separates a shop from a broker.
A precision gear fails quietly. A tooth a few microns proud overloads, the mesh gets noisy, pitting starts, and the drive loses life - often after it has shipped to your customer. The cost of a bad gear is a warranty claim, not a returns ticket. That is why sourcing is less about finding a cheap machine and more about finding a shop that can prove the geometry with data.
What is actually at stake
- Warranty exposure - a failed gear in the field is a recall-grade event.
- Noise and vibration - uneven teeth make a driveline audible and harsh.
- Service life - overload on one tooth collapses the rest of the gear.
- Lead time - a rejected lot restarts your qualification clock from zero.
The good news: a disciplined shop makes gear quality boring - predictable process, documented controls, repeatable geometry. That is what you are really buying.

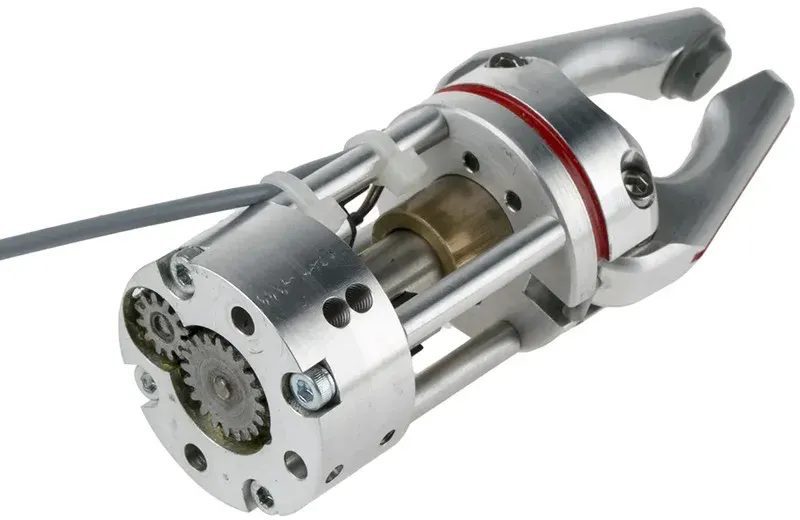

Precision Transmission CNC precision component
CNC Gear Machining Capability Every Transmission Supplier Needs
Ask for the gear-check report, not the brochure photo.
There are two ways to cut teeth. Hobbing is the high-volume method that generates the involute in one rolling motion; CNC gear machining (milling the teeth on a 5-axis or turn-mill center) is the right call for prototypes, low volumes, and integrated gear-and-shaft parts. Either way, the supplier must be able to measure what they cut: pitch, profile, lead, and runout - not just claim it.
What to verify before you quote
- Can they name the DIN 3962 grade they will hold and inspect to it?
- Do they cut the teeth and the shaft features in one setup where possible?
- Do they verify pitch, profile, and lead on a gear-check or CMM?
- Can they hold the bore and teeth concentric to one datum?
- Will they provide material certs and a Certificate of Conformance?
| Capability | What it gives you | Our floor |
|---|---|---|
| Single-setup gear + shaft | Teeth concentric to bore | Turn-mill, 60+ CNC |
| Gear-check / CMM | Prove the DIN grade | Per first article + audit |
| Material certs | Known melt, traceable | Every lot |
| Climate-controlled cells | Stable size across a shift | Controlled shop |
Spline Shaft Sourcing: DIN 5480 and the Root Radius Trap
A spline looks simple until the root radius cracks.
Spline shaft sourcing lives and dies by two details: the flank form and the root radius. The usual standard is DIN 5480 for involute splines, which defines the flank geometry and fit classes. The trap is the root radius - a sharp corner at the tooth root is a stress riser that, under repeated sliding torque, becomes a crack. The cutter always leaves a radius; designers who draw R0 get either a scrap part or an undocumented weak point.
What to get right on a spline shaft
- Match the flank form to the standard (DIN 5480 involute is the usual one).
- Control major, minor, and pitch diameters to the fit class.
- Specify a real root radius so the spline does not crack in service.
- Keep the spline concentric to the shaft axis - turn-mill helps here.
- Chamfer the ends so the mating hub slides on without galling.
| Spline type | Use it for |
|---|---|
| Involute (DIN 5480) | High-torque, self-centering shafts |
| Straight-sided | Indexing, moderate torque |
| Ball spline | Precision linear plus rotary transfer |
Precision Transmission CNC precision component
Coupling Machining: Holding Runout on the Coupling Face
A coupling exists to forgive misalignment - but only if it is itself true.
Coupling machining is about holding the bore, the keyway, and the mounting flange all true to one axis. A coupling that is out of round or off-axis becomes a vibration source the whole driveline feels. The parts are simple in shape but unforgiving in geometry: bore-to-shaft fit, keyway position, and face runout all matter.
| Coupling type | Best use |
|---|---|
| Rigid flange | Precise, fixed alignment |
| Jaw / spider | Light servo and instrument drives |
| Oldham | Parallel misalignment, zero backlash |
| Bellows / disc | High-precision, low runout |
Pros
- True bore means no induced vibration
- Keyway located to the feature, not by eye
- Single-setup hold keeps flange square
- Repeatable across the batch
Cons
- Tight runout needs single-datum work
- Keyway timing adds an operation
- Harder materials add cycle time
- Inspection must include runout
DIN Gear Standards: The Grade You Must Put on the Drawing
If the grade is not on the drawing, you are buying 'precise' - which is not a number.
DIN gear standards give you a shared vocabulary for gear accuracy. DIN 3962 defines the quality grades for tooth deviations - profile, lead, and pitch - on a scale where a lower number is tighter. DIN 5480 covers involute splines, and DIN 3967 covers reference dimensions. Naming a grade tells a supplier exactly how much deviation the application can tolerate. Without it, you are hoping.
Terms you will hear (and should specify)
- DIN 3962
- The German standard for gear accuracy grades - allowable deviation in profile, lead, and pitch.
- DIN 5480
- The standard for involute splines - flank form, diameters, and fit classes for torque shafts.
- DIN 3967
- Reference dimensions for gears - tip, root, and base-circle geometry.
- Module
- The size of the tooth (pitch diameter divided by tooth count) - sets the whole gear's scale.
| DIN 3962 grade | Typical use |
|---|---|
| 5-6 | Precision servo, instrument, aerospace |
| 7-8 | General industrial drives |
| 9-10 | Non-critical, low-speed gearing |
Precision Transmission CNC precision component
CNC Precision Machining of Integrated Gear-and-Shaft Parts
A gear that is also a shaft should be cut as one part, not two.
Many transmission parts are a gear at one end and a shaft, flange, or bore at the other. Doing the gear on one machine and the shaft features on another means re-clamping and re-establishing the datum - a 0.01 to 0.03 mm runout risk on every move. CNC precision machining on a turn-mill center cuts the gear teeth and the shaft features in one chuck, so everything stays referenced to the same spindle axis.
What turn-mill does in one clamp
- Turn the shaft and bore to size and roundness.
- Mill the gear teeth with the part still on the axis.
- Cut flanges, keyways, and cross-holes without releasing the part.
- Drill and tap on the same datum.
- Inspect concentricity and runout in-process before removal.
| Approach | Setups | Runout risk |
|---|---|---|
| Gear machine + lathe/mill | 2-3 | 0.01-0.03 mm per re-clamp |
| Turn-mill, single chuck | 1 | None after first clamp |
A Buyer's Verification Checklist for Precision Gears
Copy this and send it to every shop on your shortlist. The answers will sort them fast.
- Do they machine the gear and shaft features in one setup (turn-mill)?
- Can they state a DIN 3962 grade and inspect to it, not just 'precise'?
- Do they hold the bore and teeth concentric to the same datum?
- Can they machine spline shafts to DIN 5480 with a controlled root radius?
- Do they provide material certs and lot-level traceability?
- Will they verify runout and pitch on a gear-check or CMM?
- Do they answer engineering questions with numbers, not sales talk?
- Can they scale from prototype to volume without re-qualifying the process?
A supplier that clears all eight is rare - and worth keeping. One that stumbles on concentricity or cannot name a DIN grade should not be on a transmission program. Send us your gear or spline-shaft drawing for a free DFM review and we will return the answers with data, not a brochure.
Precision Transmission CNC precision component
Common Sourcing Mistakes in CNC Gear Machining Programs
Most gear failures were decided at the drawing, not the machine.
- Specifying a gear without naming a DIN 3962 quality grade.
- Holding the bore tight but ignoring tooth runout to that bore.
- Drawing a sharp spline root radius that the cutter cannot cut.
- Skipping first-article inspection to 'save time' - the cheapest insurance you have.
- Splitting gear and shaft work across shops and wondering why they drift.
- Ignoring traceability until a single complaint forces a full program review.
The cheapest gear is the one that passes qualification the first time - because the second time costs you a launch date and a warranty claim.
Precision Transmission CNC precision component
Precision Transmission CNC precision component
Precision Transmission CNC precision component
Precision Transmission CNC precision component
FAQ: precision gears & Precision Transmission Buyer Questions
A: Ask for a first-article gear-check report (pitch, profile, lead, runout), confirmation that gear and shaft features are cut in one setup where possible, material certs, and a Certificate of Conformance. A shop that answers with a photo instead of data is not ready for precision transmission work.
A: Yes. We cut involute splines to DIN 5480 with controlled major, minor, and pitch diameters and a generous root radius to avoid stress risers, keeping the spline concentric to the shaft axis via single-setup turn-mill work.
A: Precision servo, instrument, and aerospace gears typically need DIN 3962 grade 5-6; general industrial drives sit at 7-8. We machine to the grade you specify and inspect against it rather than quoting a vague 'high precision'.
A: Hob for high-volume, simple gears where the tooling pays off. For prototypes, low volumes, and integrated gear-plus-shaft parts, CNC milling the teeth on a 5-axis or turn-mill center is faster to set up and keeps the teeth concentric to the bore. We do the latter in-house.
A: Every lot is tied to its material mill certificate, machine, operator, and inspection records, plus a Certificate of Conformance - so any shipped part can be traced back to its full history from raw bar to finished component.
A: Yes. Turn-mill compound machining cuts the gear teeth and the shaft, bore, keyway, and flange features in a single chuck, so everything stays referenced to the same spindle axis and runout stays controlled.
Planning a precision gear or spline shaft and unsure which DIN grade and tolerances your application really needs? Send us your drawing for a free DFM review - we will flag the features that should move to turn-mill, the geometry worth holding tight, and the inspection that proves the grade. No obligation, just a clear engineering answer.
