Optical Lens Barrels: Sub-Micron Stability in Machining (2026)
If you are sourcing optical components for a camera module, microscope, LiDAR head, medical endoscope or industrial inspection lens in 2026, the part that decides your image sharpness is rarely the glass. It is the barrel that holds the glass. A lens element can be polished to a fraction of a wave, yet the image still drifts, grids roll, or focus wanders with temperature, because the barrel lost its sub-micron stability. Most procurement teams obsess over the optics and forget the structure around them, then wonder why two 'identical' builds behave differently on the test bench.
This article is written from the buyer's side of the table. We walk through what actually gives a lens barrel its sub-micron stability, why invar machining and disciplined CNC instrumentation matter more than the metal grade alone, and how modern lens barrel machining holds the optical axis through heat, clamping and volume. The discipline described here is the same one LusterControl applies daily across medical, semiconductor, robotics and optical work under ISO 9001 and ISO 13485 controls.
By the end you will have a practical checklist of the seven specs to put on every optical-components drawing, a clear comparison of machined barrels versus assembled housings, and a straight read on when invar machining earns its cost. You will also see where a supplier's real process capability, not its brochure, keeps your optical axis where it belongs.
Table of Contents
- 1. What Are Optical Components and Why Sub-Micron Stability Decides the Image
- 2. How Lens Barrel Machining Achieves Sub-Micron Stability
- 3. Invar Machining for Thermal-Stable Lens Barrels
- 4. CNC Instrumentation and Metrology Behind Precision Optical Components
- 5. Lens Barrel Machining vs Conventional Optics Assembly: A Comparison
- 6. Choosing the Right Material: Invar Machining vs Aluminium for Optical Components
- 7. Sub-Micron Stability Buyer's Checklist: 7 Specs to Put on the Drawing
- 8. Common Mistakes in Lens Barrel Machining (and How to Avoid Them)
- 9. Why LusterControl's CNC Instrumentation Delivers Stable Optical Components

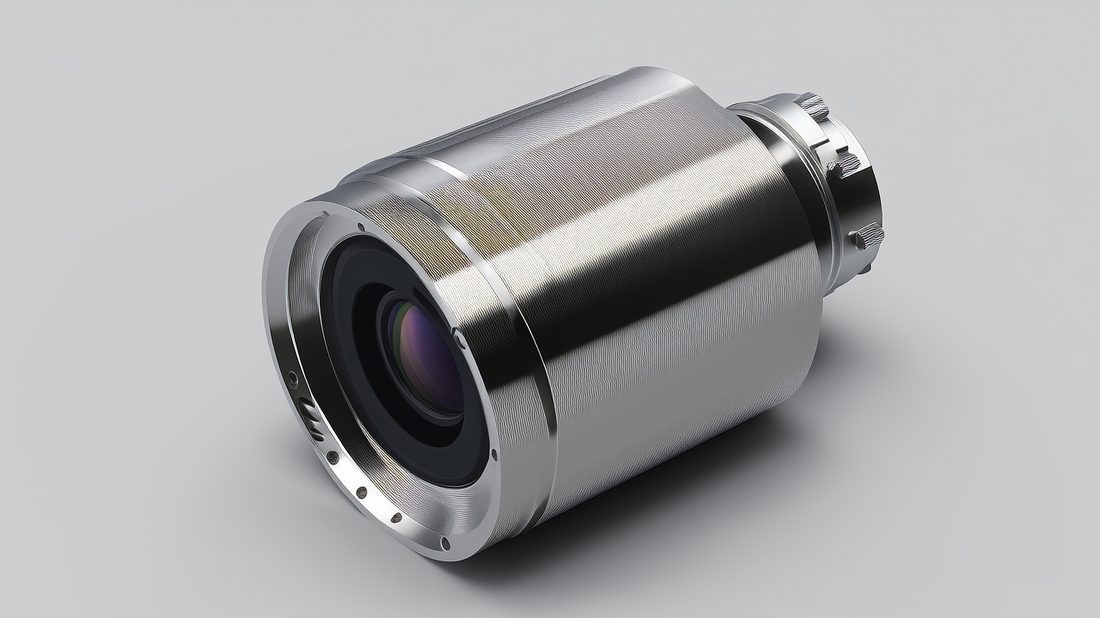

Optical AI part image
What Are Optical Components and Why Sub-Micron Stability Decides the Image
A lens is only as good as the barrel that holds it still.
Optical components are not just the glass. They are the lens elements, the spacers, the retaining rings and the barrel that fixes their position relative to one another. The barrel's job is to hold the optical axis — the imaginary line every element must share — to a tolerance far smaller than anything a structural part would ever need. When that axis shifts by a few microns, the image tilts, the magnification rolls, and the centering error shows up as blur you cannot polish out of the glass.
Sub-micron stability is a system property, not a single number
Buyers often ask for 'high precision' and stop. But sub-micron stability is the sum of several things: bore runout, thread concentricity, wall thickness consistency, thermal drift and the repeatability of every mating seat. A barrel can be machined to a beautiful surface finish and still fail if the bore that the first element seats into is 3 microns off from the thread that the next ring screws into. That is why the conversation has to be about the relationship between features, not one hero dimension.
- Optical axis
- The common centerline every lens element must share; its straightness and centering define image quality.
- Runout
- How far a rotating or referenced surface deviates from true; for a barrel, bore runout moves the seated lens off-axis.
- Concentricity
- How well two diameters share a common center; threads and bores must be concentric to keep elements centered.
- CTE (thermal expansion)
- How much a material grows per degree of temperature; low CTE keeps the barrel stable as it heats.
Why the standard off the drawing is the cheapest mistake
Optical drawings follow ISO 10110, the international drawing standard for optics, which defines how tolerances on form, centering and surface defects are expressed. Leaving the optical drawing to a shop's default means the centering grade is whoever quotes cheapest, not what your system needs. LusterControl machines optical components and their barrels to the customer's specified relationship tolerances, then verifies them, so the 500,000th part matches the first. You can review the production scale on the company profile page.

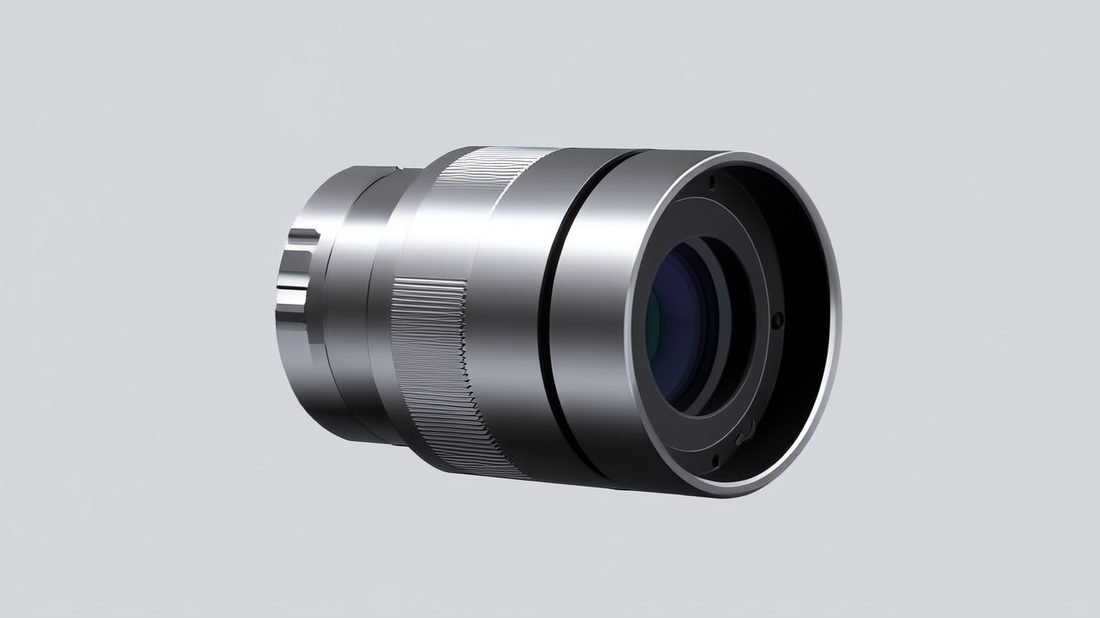

Optical AI part image
How Lens Barrel Machining Achieves Sub-Micron Stability
Five-axis and turn-mill cells turn a tube into one controlled axis.
Lens barrel machining is the art of holding a long, often thin-walled, large-diameter tube so that every internal bore, seat, thread and retainer groove references the same datum. On a conventional routed process the barrel is turned, moved to a mill, moved to a thread machine, and trusted to align after each re-fixture. Each move is a chance to lose the micron you paid for. On a 5-axis or turn-mill compound center the bore, the seats and the threads are cut in one coordinated setup, so the relationship is held by the machine, not by re-measurement you hope the inspector catches.
One setup locks the optical axis
A barrel is fundamentally a turned part with precise internal geometry. On separate stations you turn the OD, move, bore, move, thread, move again, and every datum shift compounds. Lens barrel machining on a turn-mill compound center does the OD, the internal bores, the retaining-ring seats and the focus threads in one chuck, so the optical axis is locked by the machine instead of by a stack of re-fixtures. For LusterControl the same logic runs on automotive, semiconductor and optical programs alike, because the discipline is identical: control the datum, control the axis.
When thin walls fight back
Optical barrels are usually thin-walled to save weight and avoid masking the optics, and thin walls deflect under clamping and chatter under cutting force. Holding sub-micron stability on a 1 mm wall means rigid, low-vibration workholding, sharp tools and conservative depths of cut — none of which show up on a drawing but all of which decide whether the barrel holds its shape after you let go. See how this capability maps onto real programs in our 5-axis and turn-mill capability article.
| What the barrel must hold | Routed process risk | One-setup lens barrel machining |
|---|---|---|
| Bore-to-thread concentricity | Drifts with each re-fixture | Locked in one datum |
| Internal seat flatness | Hard to reach, easy to miss | Reached by 5-axis in one flow |
| Wall thickness consistency | Clamping deflection varies | Controlled low-force workholding |
| Surface finish of bores | Tool access limits polish | Mirror / electrolytic finish available |
| Traceability of the axis | Scattered records | Batch-level, audit-ready |
Invar Machining for Thermal-Stable Lens Barrels
When the barrel heats, a stable image needs a stable material.
Invar is a nickel-iron alloy (roughly 64% iron, 36% nickel) famous for one property: an extremely low coefficient of thermal expansion, around 1.2 × 10⁻⁶ /K. Compare that with aluminium at roughly 23 × 10⁻⁶ /K or stainless steel near 17 × 10⁻⁶ /K, and the point is obvious — as a barrel warms from a warm lab to a sunlit enclosure, an aluminium barrel grows roughly twenty times more per degree than an invar one. For an optical system that must hold focus across a temperature swing, invar machining is often the difference between a barrel that drifts and one that sits still.
What invar machining demands from the shop
Invar is not a friendly material. It work-hardens fast, it is gummy at the cut, and it tends to weld to the tool if speeds and feeds are wrong, so it punishes a shop that treats it like steel. Invar machining needs rigid setups, sharp coated tools, careful coolant and, above all, consistent parameters because the alloy's low conductivity means heat stays local. LusterControl runs invar and other low-CTE alloys on the same rigid 5-axis and turn-mill cells used for medical and semiconductor work, where thermal discipline is already part of the culture.
| Material | CTE (×10⁻⁶/K) | What it buys the optical barrel |
|---|---|---|
| Invar (Fe-36Ni) | ~1.2 | Near-zero drift with temperature; best focus stability |
| Stainless 304 | ~17 | Good corrosion resistance; more thermal growth |
| Aluminium 6061 | ~23 | Light and cheap; drifts most with heat |
| Titanium (Grade 5) | ~8.6 | High stiffness-to-weight; moderate drift |

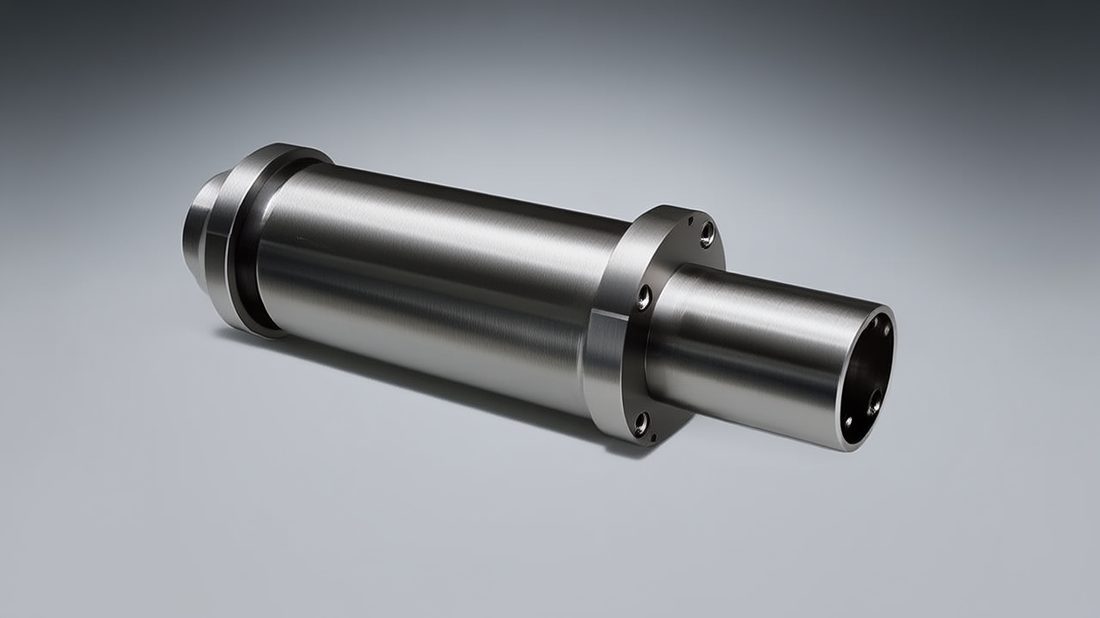

Optical AI part image
CNC Instrumentation and Metrology Behind Precision Optical Components
You cannot hold sub-micron stability without measuring it.
CNC instrumentation is the quiet half of lens barrel machining. The machine can cut to a micron, but if the metrology is done on a warm shop floor with a hand gauge, the number you ship is a guess. Real sub-micron stability comes from in-process probing, temperature-controlled measurement and a documented loop between the cut and the check. For optical components the loop has to be tight, because the tolerance band is a few microns and the cost of a missed axis is a scrapped optic behind it.
Probe, measure, correct, repeat
On a modern cell, a touch probe measures the bore and the seat in place, the controller compares against the target, and the next cut is corrected before the part leaves the chuck. That closed loop is what turns 'capable machine' into 'capable part.' LusterControl couples this with incoming-batch traceability, so the bar stock that became your barrel is documented and any deviation is tied to a lot, not a finger-point. The same discipline supports ultra-clean semiconductor parts where traceability is non-negotiable.
| Metrology step | What it confirms | Why it matters for optics |
|---|---|---|
| In-process probing | Bore / seat position before unchuck | Catches axis error before it ships |
| CMM at controlled temp | Concentricity, runout, true position | Micron claims need a stable gauge |
| Surface finish check | Ra on internal seats | Low Ra seats elements cleanly |
| Batch records | Lot-to-part traceability | Audit-ready for medical / auto |
Lens Barrel Machining vs Conventional Optics Assembly: A Comparison
Machined-in stability beats bolted-together hope.
Buyers often ask whether a fully machined barrel is worth the premium over an assembled housing made of off-the-shelf tubes and threaded rings. The honest answer is that they solve different problems. An assembled housing is fast and cheap for low-precision or prototype optics. A machined barrel earns its cost when the optical axis must stay put under heat, shock and volume. For most instruments above a toy-camera tier, machined stability is the safer path.
Choose machined lens barrel machining if
- Your system must hold focus across a temperature swing (outdoor, automotive, industrial)
- The optics are diffraction-limited and cannot absorb centering error
- You need the bore, seats and threads referenced to one datum
- You require CMM reports and batch traceability for an audit trail
- Volume is prototype-to-medium and the design will evolve
Choose conventional assembly only if
- The optics are low-cost and tolerant of mild centering drift
- Lead time and unit price dominate and volume is very high
- No audit, traceability or temperature spec is required
- The design is a one-off proof-of-concept with slack tolerances
| Requirement | Machined lens barrel | Assembled housing |
|---|---|---|
| Optical-axis stability | Held in one setup | Depends on each joint |
| Thermal behavior | Controllable via material | Mixed metals drift apart |
| Traceability | Batch-level, audit-ready | Often partial |
| Flexibility | Same cell, new geometry | Re-source each part |
| Best for | Precision optical components | Low-cost, tolerant optics |

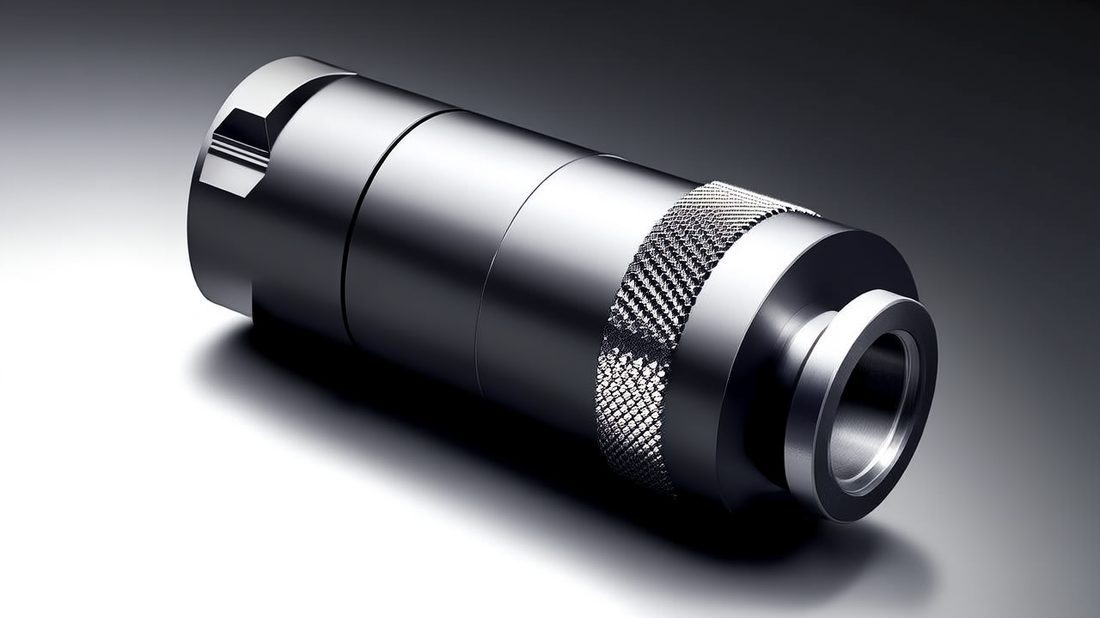

Optical AI part image
Choosing the Right Material: Invar Machining vs Aluminium for Optical Components
Material is a stability decision, not just a weight decision.
The material choice for optical components is where most of the thermal stability is won or lost before the first cut. Aluminium is light and cheap and machines beautifully, but its high CTE means the barrel grows noticeably with heat — fine for a stable indoor instrument, risky for anything that lives in a car, a drone or the sun. Stainless brings corrosion resistance and moderate stability. Invar brings the best thermal stability at the cost of machinability and price. The right call depends entirely on where your optic lives.
Match the material to the environment
If your optical components sit in a climate-controlled lab, aluminium is a sensible, light, low-cost choice and invar machining would be over-engineering. If they ride in a vehicle, an aircraft bay or a field instrument that sees real temperature swings, the low CTE of invar (or a comparable low-expansion alloy) protects the focus you paid the optician to deliver. LusterControl machines all of these and will tell you honestly when invar machining is worth it and when a lighter alloy is the smarter buy.
| Choose this material if... | Invar | Stainless | Aluminium |
|---|---|---|---|
| Stable outdoor / auto use | Best | Moderate | Weak |
| Light weight is critical | No | Moderate | Best |
| Corrosion resistance needed | Moderate | Best | Coat required |
| Lowest cost wins | No | Moderate | Best |
| Tightest thermal stability | Best | Moderate | Weak |
Sub-Micron Stability Buyer's Checklist: 7 Specs to Put on the Drawing
The quote you get is only as good as the package you send.
Before you release an RFQ for optical components or their barrels, assemble these seven items. They are what separate a real number from a guess, and they let a shop like LusterControl return a capable, on-time quote instead of a padded one. The same checklist works whether the barrel is invar, stainless or aluminium.
- The optical axis and its tolerance band, referenced to a single datum
- Bore-to-thread and seat concentricity, stated in microns not 'precise'
- Operating temperature range, not just the room-temperature tolerance
- Material grade, including low-CTE alloy if thermal stability is required
- Surface finish (Ra target) on internal bores and element seats
- ISO 10110-based optical drawing notes for centering and form
- Volume, phasing and quality paperwork: CMM report, first-article, batch traceability
When your package is complete, a supplier can run a free DFM review and flag a thin wall that will deflect, a thread that fights the bore, or a tolerance that should be relaxed. That conversation before cutting saves more than any negotiation after the parts are boxed. Start one on our inquiry page.
Optical AI part image
Common Mistakes in Lens Barrel Machining (and How to Avoid Them)
Most optical problems are specified, not machined.
After reviewing many optical RFQs, the same avoidable errors show up again and again. None of them are the machinist's fault; they are written into the drawing before the first chip is cut. Fixing them at the spec stage is free compared with reworking a lot that has already shifted your optical axis.
Pros
- Naming the optical axis and its micron band so stability is measurable
- Stating the operating temperature range, not just 20 °C
- Machining bore, seats and threads in one setup
- Specifying ASTM A967 passivation for stainless bores
- Requesting batch traceability for audit-ready optics
Cons
- Specifying only 'high precision' with no micron band
- Assuming a tight tolerance the shop never agreed to hold
- Assembling a housing when a machined barrel was needed
- Forgetting the material's CTE until the barrel drifts in the field
- Leaving centering grade open on the ISO 10110 notes
The drift that bites in the field
The most expensive mistake is the silent one: a drawing that says 'optical barrel, precise' with no temperature band and no axis tolerance. The shop delivers a perfectly good room-temperature part, you fit it, and at 40 °C the focus wanders. The fix costs nothing on paper — write the micron band and the temperature range on the drawing — but it changes everything on the test bench. For the highest stability, confirm the material (invar machining) and the finish-grind or polish step with your supplier up front; lens barrel machining handles the tight turned features, and a qualified finish closes the last microns.
Why LusterControl's CNC Instrumentation Delivers Stable Optical Components
Optical discipline sharpens the whole floor.
We did not add lens barrel machining to chase a badge. We added it because the same discipline optical components demand — rigid cells, ±0.005 mm control, single-setup datum locking and batch traceability — is exactly what makes every other industry's parts better. An optical program is a stress test that lifts the whole process, which is why LusterControl serves optical alongside medical, automotive, semiconductor, UAV and robotics work.
The quality system underneath the metal
Every barrel and optical component at LusterControl is made under ISO 9001 and ISO 13485 controls, with IATF 16949 in progress, and with passivation where ASTM A967 cleanliness is required. For buyers that means the paperwork trail is built in, not bolted on after the fact. You get material certs, CMM data and batch records that survive an audit, whether the part is a one-off prototype or a 500K-piece run.
One house from drawing to volume
LusterControl has supplied precision components to brands such as De'Longhi, Donlim and Breville, and supports industries from medical and automotive to UAV, robotics and optical. That breadth means the turn-mill cell cutting your invar barrel also runs parts held to medical and automotive discipline, so the cross-pollination leaves your optical components production-ready. With 60+ CNC machines across a 4,000 m2 Dongguan source factory at 500K parts per month, the same CNC instrumentation that stabilizes an optical axis also gives you prototype agility and production scale under one quality system.

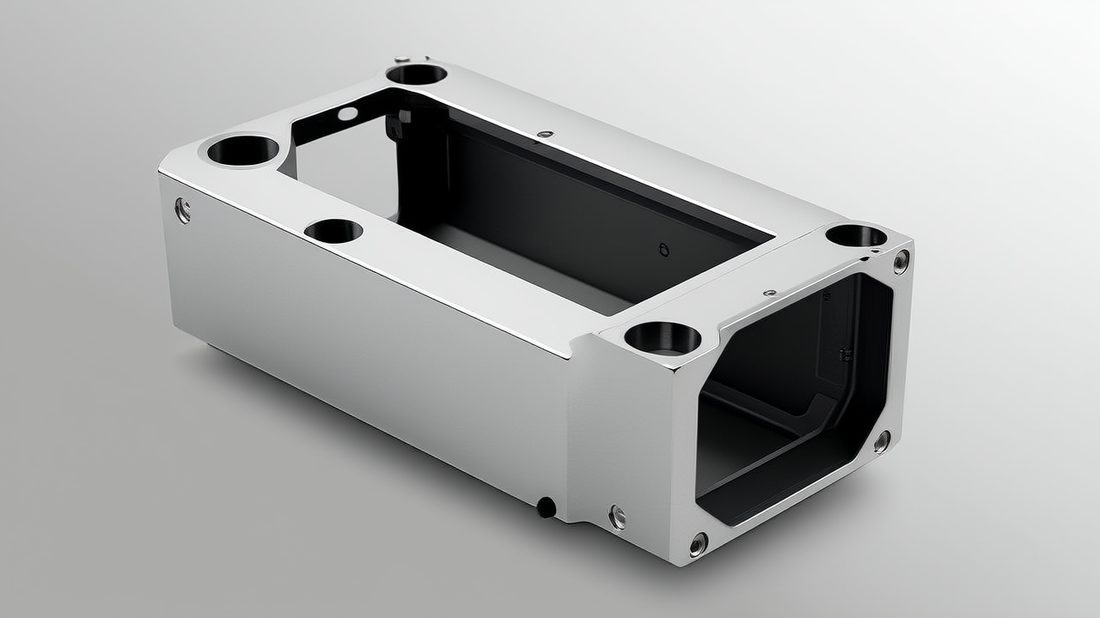

Optical AI part image

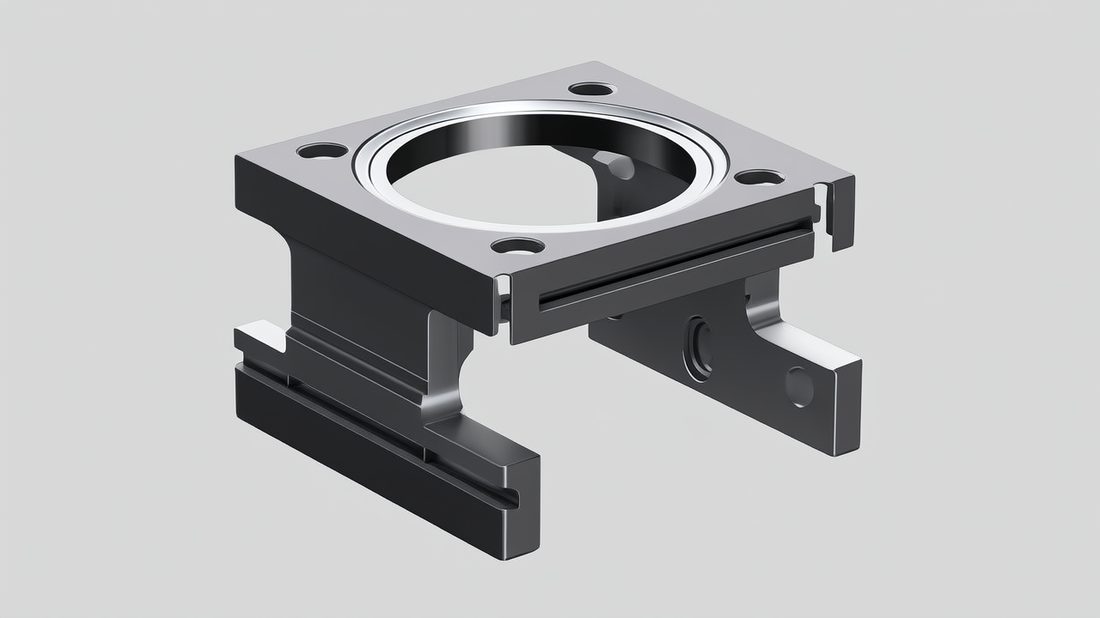

Optical AI part image

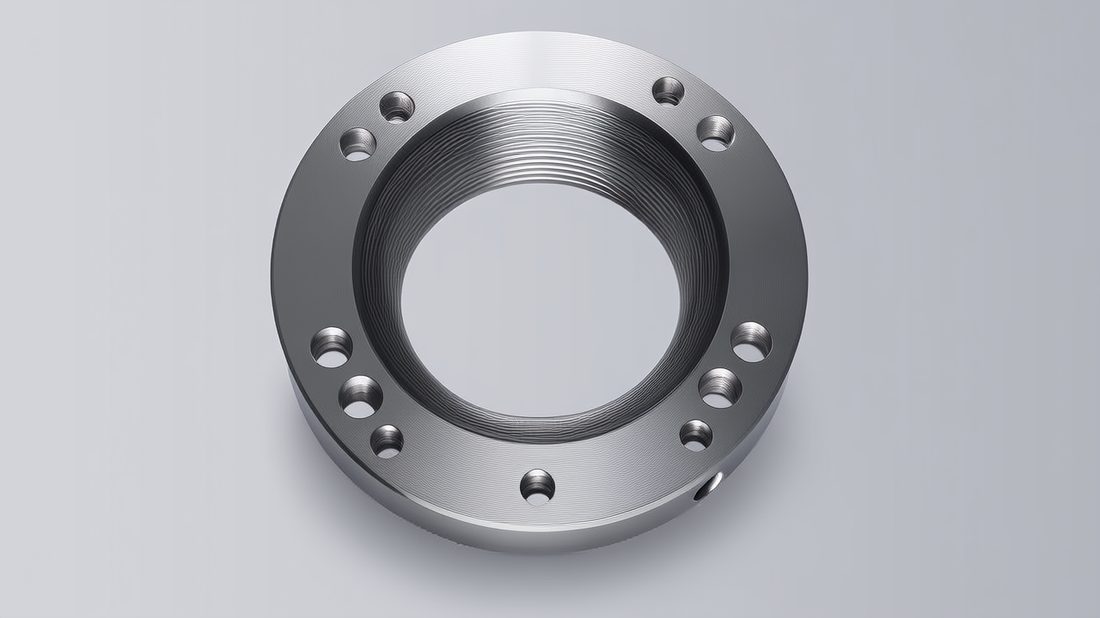

Optical AI part image

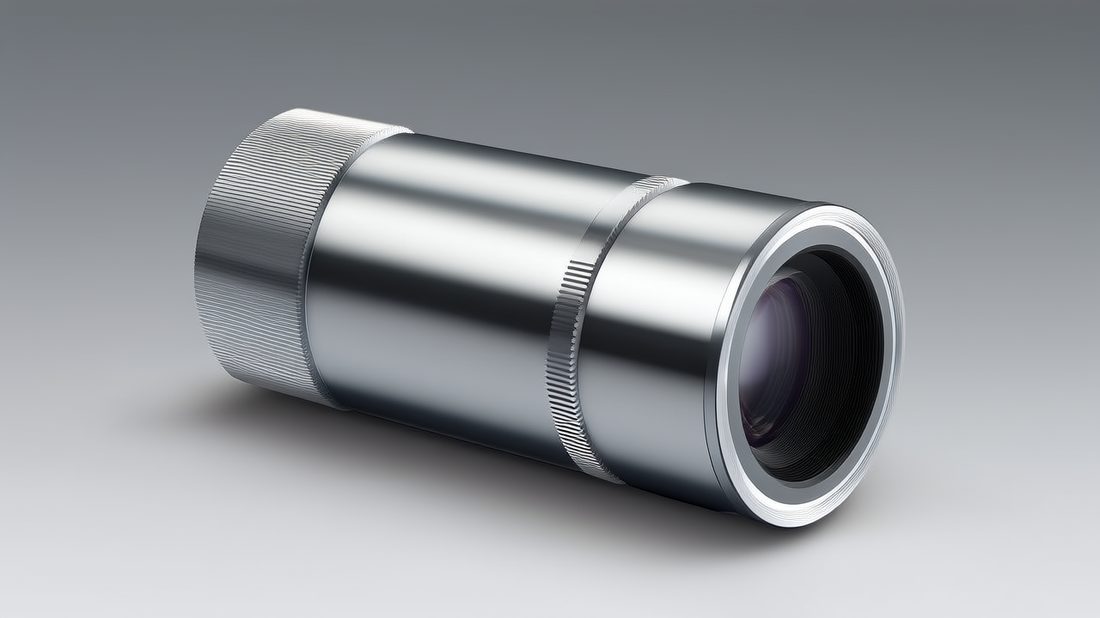

Optical AI part image
FAQ: optical components & Optical Buyer Questions
A: It means the barrel holds the optical axis — the common centerline of every lens element — to within a micron or less, across bore runout, thread concentricity, seat position and temperature change. If the axis shifts by a few microns, the image tilts or loses centering. Stability is a property of the whole relationship between features, not one hero dimension.
A: Invar machining earns its cost when the optic lives where temperature swings are real — automotive, outdoor, aerospace or field instruments. Invar's CTE is around 1.2 × 10⁻⁶/K versus aluminium's ~23, so it barely grows with heat and protects the focus you paid the optician to deliver. For a climate-controlled lab, lighter aluminium is usually the smarter buy.
A: Our turn-mill and 5-axis cells hold ±0.005 mm repeatably on turned features such as bores, seats and pilot diameters, with Ra 0.2 µm (8K mirror) achievable on internal surfaces. Bores, seats and threads are cut in one setup so concentricity is locked by the machine, and every lot is verified with CMM reports and first-article inspection.
A: Name the optical axis and its micron band referenced to a single datum, the bore-to-thread concentricity in microns, the operating temperature range (not just 20 °C), the material grade including low-CTE alloy if needed, the Ra target on internal seats, ISO 10110 centering notes, and your volume with the quality paperwork expected. A complete package enables a free DFM review and a real number.
A: Machined lens barrel machining holds the optical axis in one setup, so bore, seats and threads all reference the same datum and stay aligned under heat and load. An assembled housing made of tubes and rings can drift at every joint and is hard to rework once glued or threaded. Choose machined stability when the optics are precision-grade or the environment is unforgiving.
A: Every lot carries material certification, in-process records and inspection data tied to the batch, supported by ISO 9001 and ISO 13485 discipline. Combined with in-process probing and CMM verification, this gives optical buyers an audit-ready trail from raw bar to finished barrel, whether the run is a prototype or 500K pieces.
Send us your lens barrel or optical component drawing for a free DFM review and a realistic lead-time quote, whether it is a prototype in invar or a production run in stainless.
